Mercedes Benz AK500 AK500+ Key Programmer

Mercedes Benz AK500+/AK500 Plus Key Programmer is the updated version of AK500 Pro. It can read key data and write keys from MB Dump together with EIS SKC Calculator. AK500+ will program Mercedes keys till year pre-2009. The new upgrade enables AK500 to perform SBC Repair function for Mercedes Benz cars directly via the OBD2 Diagnostic interface.

AK500+ Overview:
AK500 programmer skc calculator

The Main Difference between AK500+ with SKC Calculator and Old AK500 Pro:

1) AK500+ with SKC (SK110) has no 8PIN EEPROM adapter holder, because AK500+ with SKC only needs to read out EIS data and send the data to SKC calculator to calculate, then complete key matching;
The old version AK500 has 8PIN EEPROM adapter holder to help read and write ESM data, because AK500+ needs to de-solder EIS, ESM and ESL ECU when it makes Mercedes Benz key.
2) AK500+ with SKC (SK110) support more car models than old version AK500.
3) AK500+ pro can’t make key if without SKC calculator; while old version AK500 pro can make key.
4) AK500+ pro with SKC calculator doesn’t contain external EEPROM (M95xxx), so it does not need to deal with M95xxx, because AK500+ pro contains SKC calculator, after ak500+ read out EIS data and send it to SKC calculator to calculate, the key data is acquired; The old version AK500 key Pro contains 95XXX, AK500 need to remove chip 95XXX and weld it on the 95XXX adapter.

AK500+ Key Programmer Features:

Language: English
Operating system: Windows XP only
Software/Firmware Update: by CD
Ak500 key programmer Ak500 key programmer

Support models:
Mercedes-Benz: W220/W220 “Keyless Go”
W208/W210/W220/W203/W215/W230/W209/W219/W211/W230/W215 EEPROM(M95xxx)
Volkswagen Audi: MPC(MPC555/556,MPC561/562,MPC563/564),
external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx)

1. AK500+ Key Pro Functions:

1) Match and support “Keyless Go” function of Benz Infrared Key;
2) Support Benz Infrared keys lock and unlock for EIS+ESL+ESM, the leading technology all over the world;
3) Support directly reading EEPROM for BENZ DAS (1995-1998) via OBD, can to unlock DAS when you lost all keys and DAS is locked;
4) Read and write the ESL of E/Class and C/Class via K-line, no need remove ESL;
5) Support Benz ECU’s flash 29F400 and 29F800) generate key data. Need to use STAR 2000 to do ECU coding.
6) No need to choose the MCU type of EIS. When load EIS file, recognize EIS file, and generate key file. If your MCU is HC705, software will automatically suggest “load next EIS file of HC705”
7) Powerful for Motorola MCU programming function, Directly reading dumps of EEPROM(HC908) and Flash(HC912,HC9S12,HC9S12X)for motorola MCU, in support of the engine ECU of Benz,  VW and Audi etc MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPRO(M95xxx). It is an advanced tool of car ECU repair and programming, odometer adjustment and key programming.
8) Directly read out CAS3 with SKC calculator.

2 .Follow-up upgrade:
Benz(R or W220) shift module ISM and 722.9 gearbox ECU drive authority;
Upgrade ESM read and write EEPROM.

3. AK500+ parameters:
Online Communication Interface: USB2.
Power Specifications: AC Input 100-240V, 50/60HZ; output 12V/2A DC power consumption: 40W

EIS SKC Calculator Overview:
MB Dump key generator from eis

Mercedes-Benz EIS Super SKC Calculator V1.0.1.2 can calculate 8 Digital Newest Version for MB Dump.

With this MB dump key generator, you can generate up to 8 keys by yourself. MB key generator from EIS dump only without removing any part even for MB cars with 7 years, all you have to do is to read the EIS dump generate keys and start the car.

Newest software version: V1.0.1.2

Support Calculate 8 Digital

SKC Calculator supports HC05,HC08,HC12,9S12,NEC EZS,204,221,212,207,164. Our software has a micro auto detect, all what you need is just to load the file.

New update is available for A and B class.
MB Dump key generator from EIS software DIS Mercedes SKC key calculator

AK500+ Key programmer & SKC Calculator package:
AK500 key programmer with EIS SKC calculator

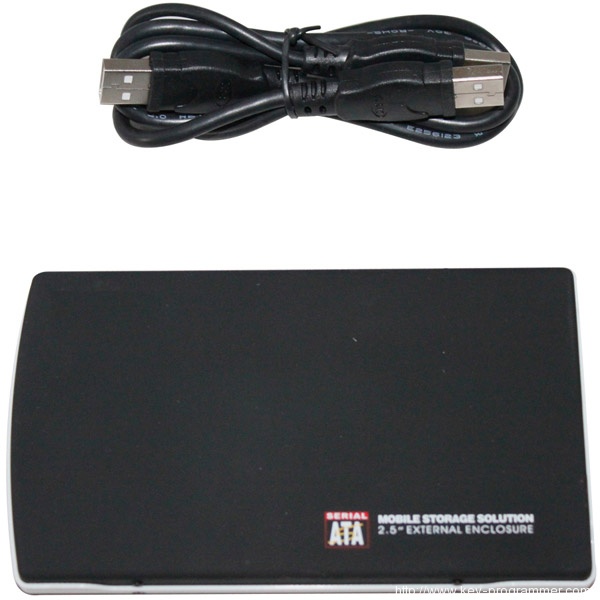

AK500 key programmer database external HDD 320G

AK500 external HDD 320G is Benz Vehicle database for AK500 or AK500+ Benz key programmer. It is used for generate key data or unlock ESL. If you do not have SKC Calculator for Benz key programmer, when you want to generate new key data and unlock ESL, this database will be helpful for you to resolve the problem.
