Original OBDSTAR Tools One Click Update Guide

Original OBDSTAR Tools ( X100 Pro, X300 Pro3/Key Master, F102, F108, F100, X300M etc) can be updated online by one-click upgrade. Here is the step-by-step update instruction on OBDSTAR software upgrade.



Update Procedure:

Step 1: Remove the TF card from your device.
Insert your TF card into computer.
Format your TF card and ensure it is empty.
Step 2: Login OBDSTAR official website,and click “One Key upgrade

01-login-obdstar-website

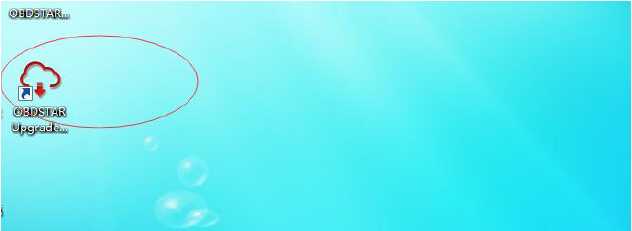

Step 3: Download and install the “One Key upgrade”. You will see this software.

02-download-and-install-one-key-uprgade

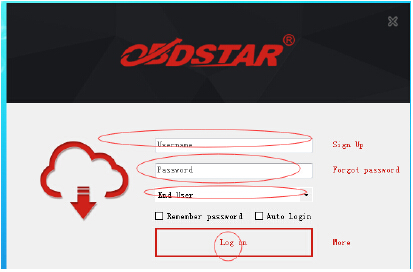

Step 4: Open the “one key upgrade”. Input your username and password. Then select “End User” and click “Log in”.

03-enter-user-info

Step 5: Input your S/N (Serial Number).

04-enter-sn

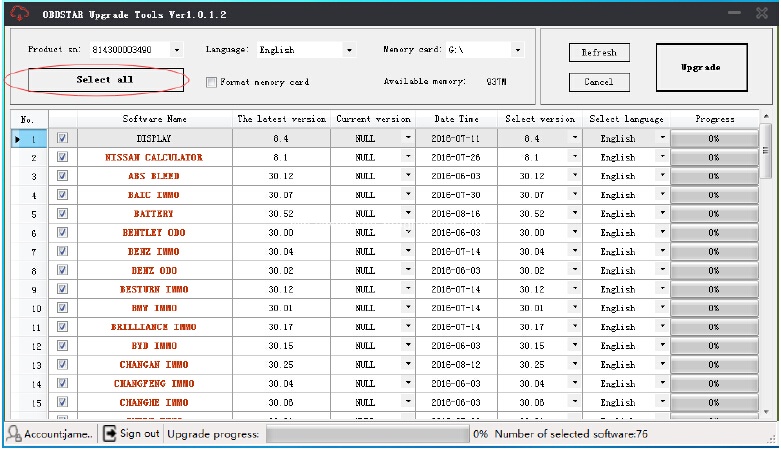

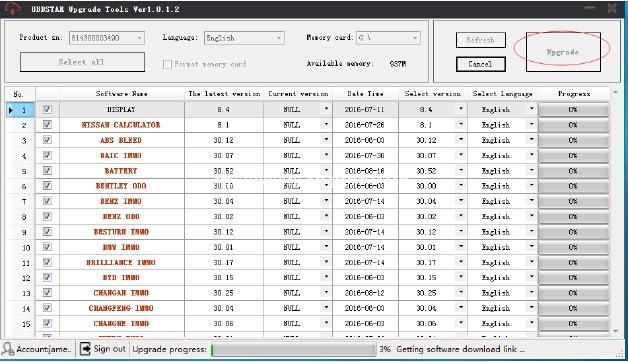

Step 6: Select all and click “Upgrade”.

05-select-software-and-update

06-upgrade

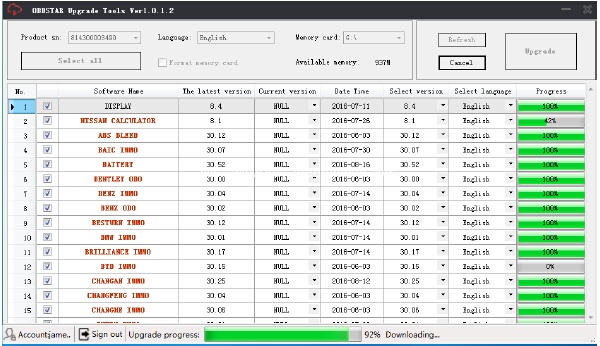

09-update-in-progress

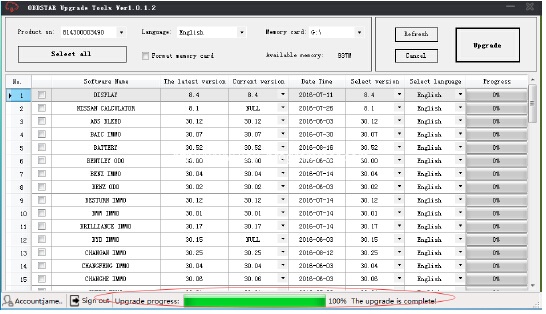

Step 7: Upgrade completed.

10-update-complete

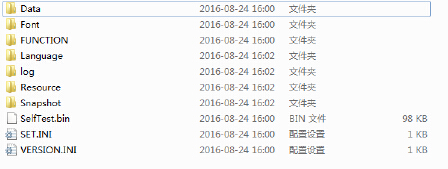

Step 8: Open your TF card. You will see these files.

11-open-tf-card

Step 9: Remove the TF card from the computer. Insert your TF card into the device.
Update succeeds!
http://www.obdii365.com/upload/pro/201609/obdstar-one-key-upgrade-guide.pdf
