How to Program Hyundai Tucson 2007 Remote Key

Here is tutorial on Hyundai Tucson 2007 remote key programming step-by-step by using OBDSTAR Key Master (same as OBDSTAR X300 Pro3) auto key programmer.

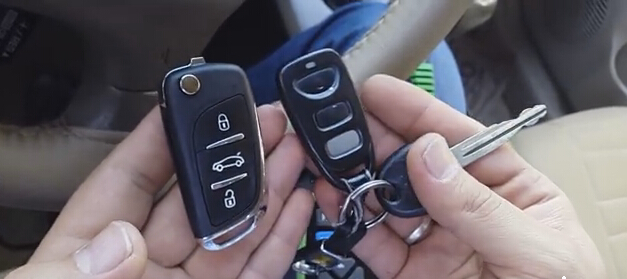

Prepare:

1 working key

1 remote key

program-hyundai-2007-remote-1

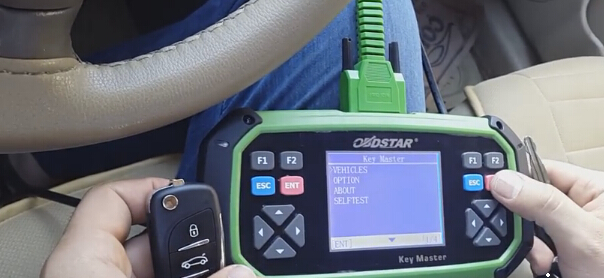

Connect OBDSTAR Key Master with vehicle via OBD diagnostic socket

Power on the device

program-hyundai-2007-remote-2

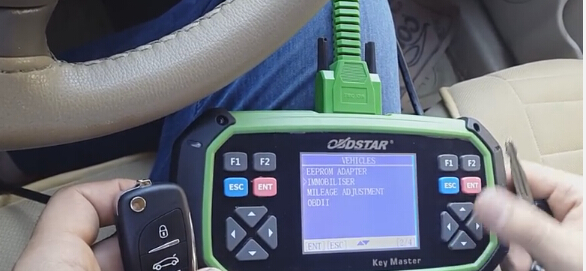

Select VEHICLES

program-hyundai-2007-remote-3

Select IMMOBILISER

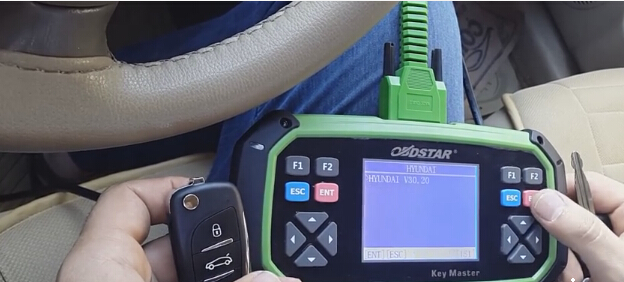

program-hyundai-2007-remote-4

Select vehicle brand: HYUNDAI

Check Hyundai software version

Initializing , wait well communication built

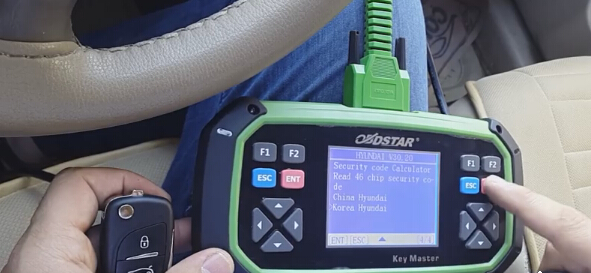

program-hyundai-2007-remote-5

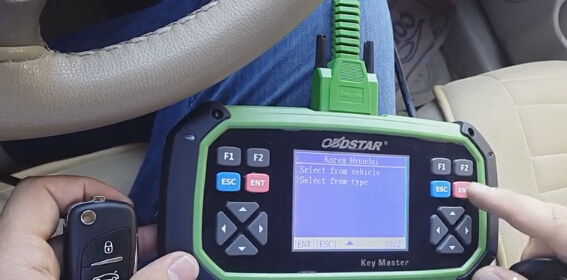

Select Korea Hyundai

program-hyundai-2007-remote-6

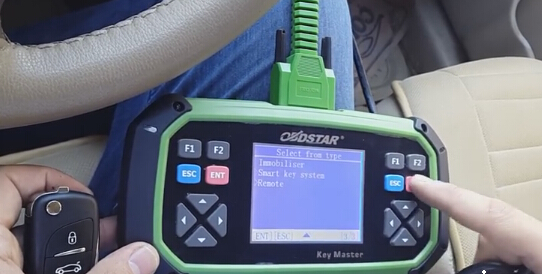

Select from type

program-hyundai-2007-remote-7

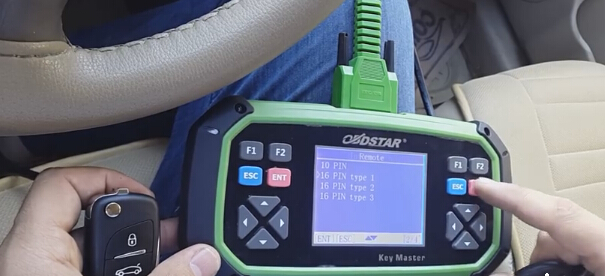

Select Remote

program-hyundai-2007-remote-8

Select 16 PIN Type 1 under Remote menu

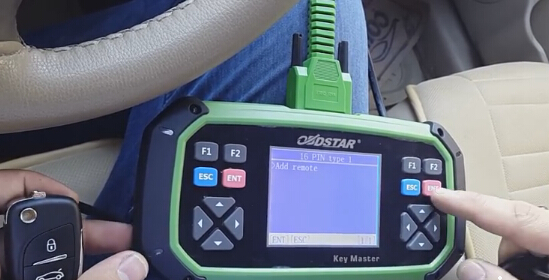

program-hyundai-2007-remote-9

Select Add remote

program-hyundai-2007-remote-10

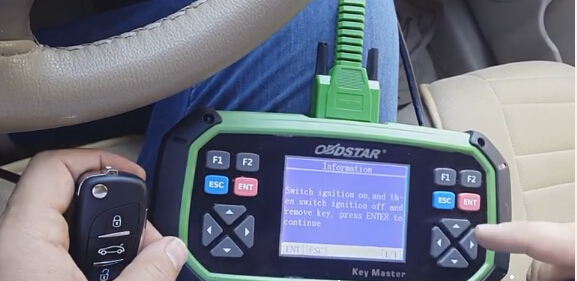

Switch ignition on and them switch ignition off and remove key. Press ENTER to continue

program-hyundai-2007-remote-11

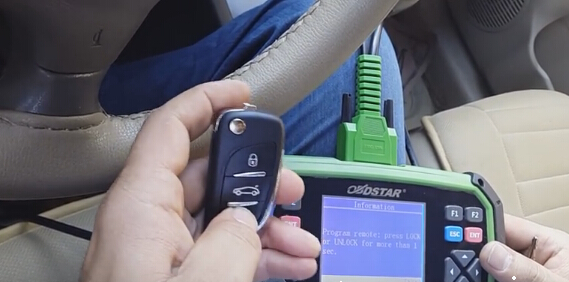

Press remote: press LOCK or UNLOCK for more than 1 sec.

program-hyundai-2007-remote-12

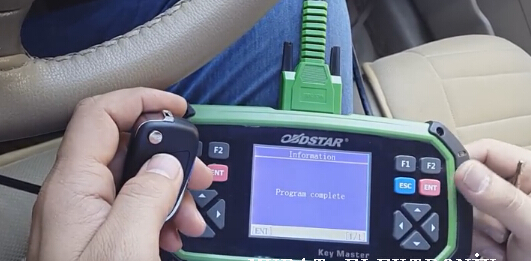

Program success, if you need to program next key, press ENTER to continue. If not, back to main interface.

Test the new remote key.
