2015 VVDI2 Commander Key Programmer- it’s all here

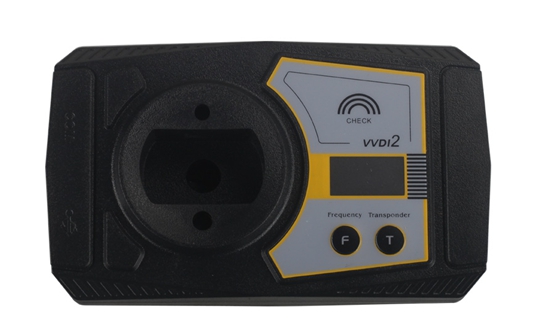

VVDI2 key programmer
This is introduction about the update version of VVDI— VVDI 2 commander key programmer. Here are some information about the VVDI-II hardware and software.

What is new on VVDI 2 commander?
newly add BMW Porsche model,
added plug-in function and reserved connectors,
support IMMO programming for part vehicles.

VVDI II HARDWARE introduction:

1. Specification:

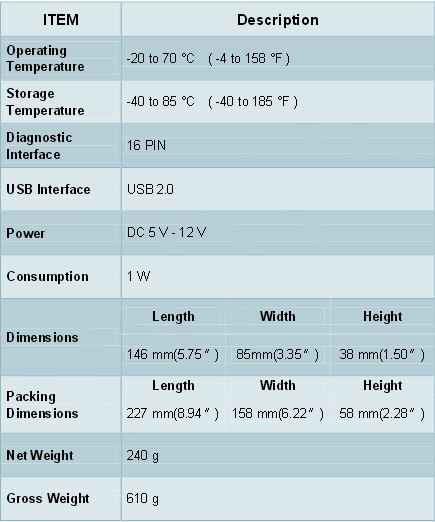

VVDI2 key programmer Specificationo

2. PC/ laptop requirement:
VVDI2 PC Laptop Requirement

3. VVDI II package description:
VVDI2 key programmer package
1). VVDI2 device
2). 5th BDM Programmer
3). OBD line
4). CAS plug (Extra plug, need buy from dealer)
5). Remote Programmer (Extra plug, need buy from dealer)
6). USB cable

4. Hardware update:

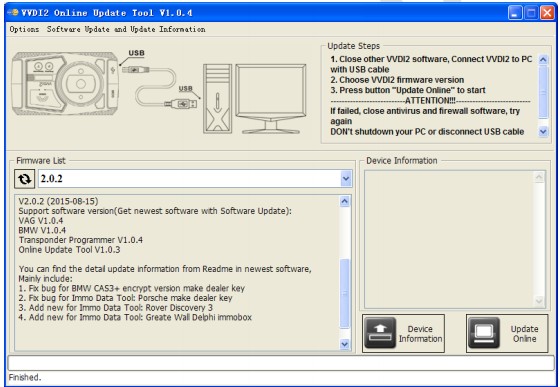

— main window for update online (see the following pic). The program will read the newest software version from server automatically
— steps:
1. Close other VVDI 2 programs, connect VVDI 2 to PC and USB cable
2. Choose VVDI II commander firmware version from firmware list
3. Press the button “Update Online” and wait the progress end
4. If failed to get firmware list or get something like “communication with sever error!” while update your device, close anti-virus and firewall programs, try again. Change your internet provider once failed again.
5. Do not shutdown your PC or disconnect USB cable while update device.
VVDI2 key programmer firmware update

VVDI II SOFTWARE introduction:

VVDI commander has the following programs according to its main functions:
1. Auto detect transponder and remote frequency test
2. VVDI2- Quick Start
3. VVDI2- VAG Software
4. VVDI2- BMW Software
5. VVDI2- Transponder Programmer
6. VVDI2- PassThru Configuration
7. VVDI2- Software Update Online

1. Auto detect transponder and remote frequency test
These two functions are very useful.
Transponder can be auto detected by VVDI2 from main device. Just input transponder and press button “T” on VVDI 2. You just need provide power to VVDI2.
Remote key’s frequency can be auto detected by VVDI2 from the main device. Press button “F” on VVDI2, place remote key on check area and use any button on your remote key.

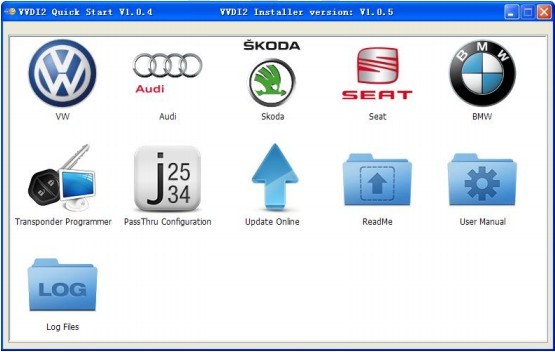

2. VVDI2 key programmer– Quick Start
vvdi2- quick start tool

3. VVDI2- VAG Software
Support VAG cars including VW, AUDI, SEAT, SKODA, 4th immobilizer Porsche, 4th immobilizer Bentley

Main function:
Read & write Immo4/Immo5 system
key Learning (for almost VAG vehicles- VW, AUDI, SEAT, SKODA, 4th immobilizer Porsche, 4th immobilizer Bentley )
Program BCM remote
K-Line instrument immobilizer box
Correct odometer
Program control unit
Unlock Immo1/Immo2 firmware protection
Support data manipulation tools

4. VVDI2- BMW Software
Support cars: BMW
Support types:
Main function:
Read&write EWS,
Read CAS information,
Read/write CAS EEPROM,
Read/write KM stored in CAS,
Synchronization DME with CAS,
Synchronization CAS with ELV,
Key learn (immo),
File make key:
support following types:
CAS3+(0L15Y/0M23S): Support encrypt version and ISTAP version
CAS4 (F-Series 1L15Y)
CAS4 (F-Series 5M48H): Support CAS4 encrypt version
Unlock key: Support unlock key for CAS1/CAS2/CAS3/CAS3+ prepared by VVDI2
File change KM,
CAS repair…

5. VVDI2- Transponder Programmer
VVDI2 as a key programmer, can:
Program key chip
Generate specialized chips
Immobilizer data processing tool
Other key tools
Generate remote control

Support many type transponder: read/write, verify, copy…
VVDI2 Transponder Programmer VVDI2 Transponder Programmer

Prepare a special transponder (original manufacture key) and can be learned to car with PIN code.

6. VVDI2- PassThru Configuration
Support using the third-party software connected to VVDI2 for communication. Require the third-party software support SAE J2534 function.
VVDI2 Passthru configuration
Support VAG diagnostic software: OIDS, VAS 5054A

7. VVDI2- Software Update Online:
This function require Internet support.

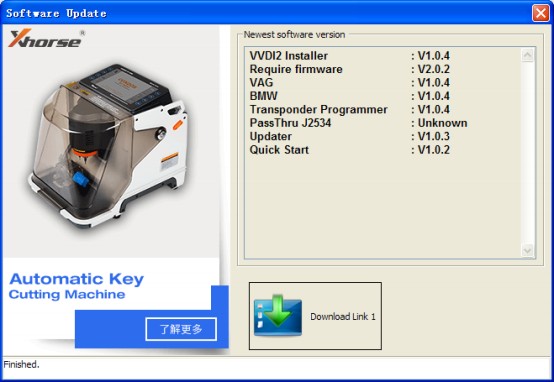

use “Menu> software update> software update” to obtain VVDI II latest software version, the software version requires firmware version (pic below). Press “Download Link” to download the software.
V86 software update
If there is no display for software version, shut down your firewall and anti virus programs, try again.

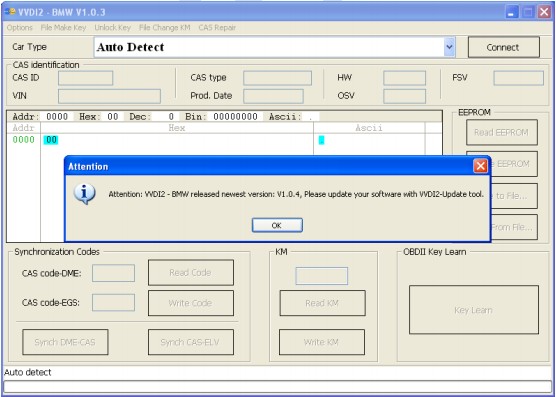

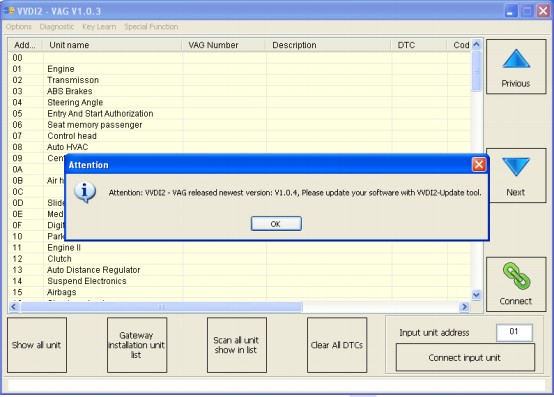

While you use VAG, BMW, Transponder Programmer programs, you will get the following window as the pics are shown below, which means your tool have the newest software version released. Please download the newest software with “Update Online”.
V86 software update V86 software update V86 software update

For the latest update information:
This function require Internet support.
Use “Menu> Software Update> Latest Update Information” to obtain VVDI2 key programmer latest update information.

For the history update information:
Use “Menu> Software Update> History Update Information” to obtain VVDI2 history update information.
